The Bohle high speed cone mill is a patented unit used for particle sizing of dry or wet products which guarantees finest sieving results.

The benefits of the Bohle Turbo Sieve 200:

  • Innovative impeller design
  • Speed 150 – 1500 rpm
  • Particle sizing of dry or wet products
  • Mobile, height adjustable, flexible
  • Production capacities of 2 – 3 tons/hour
  • Also available in explosion proof design – according to ATEX guidelines

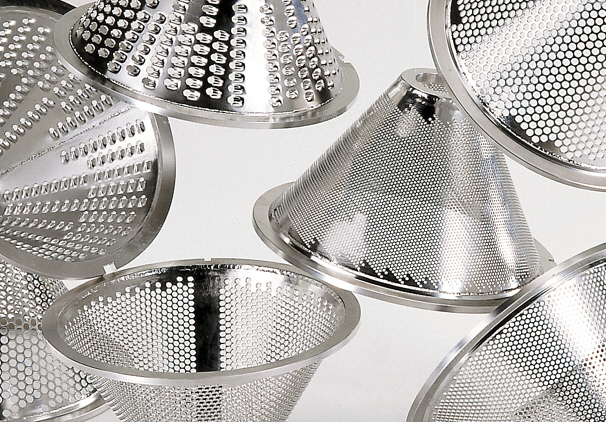

  • Conical perforated screens of different mesh sizes

This fast-running cone sieve features excellent throughput and product size distribution of wet and dry materials. Incorporating a new impeller design, the Bohle Turbo Sieve (BTS) 200 substantially shortens production time. When used with low-density materials, the sieve increases throughput by more than 50% compared to straight bar design mills. Unit production capacity is 2 to 3 tons/hour.

Patented Impeller Design

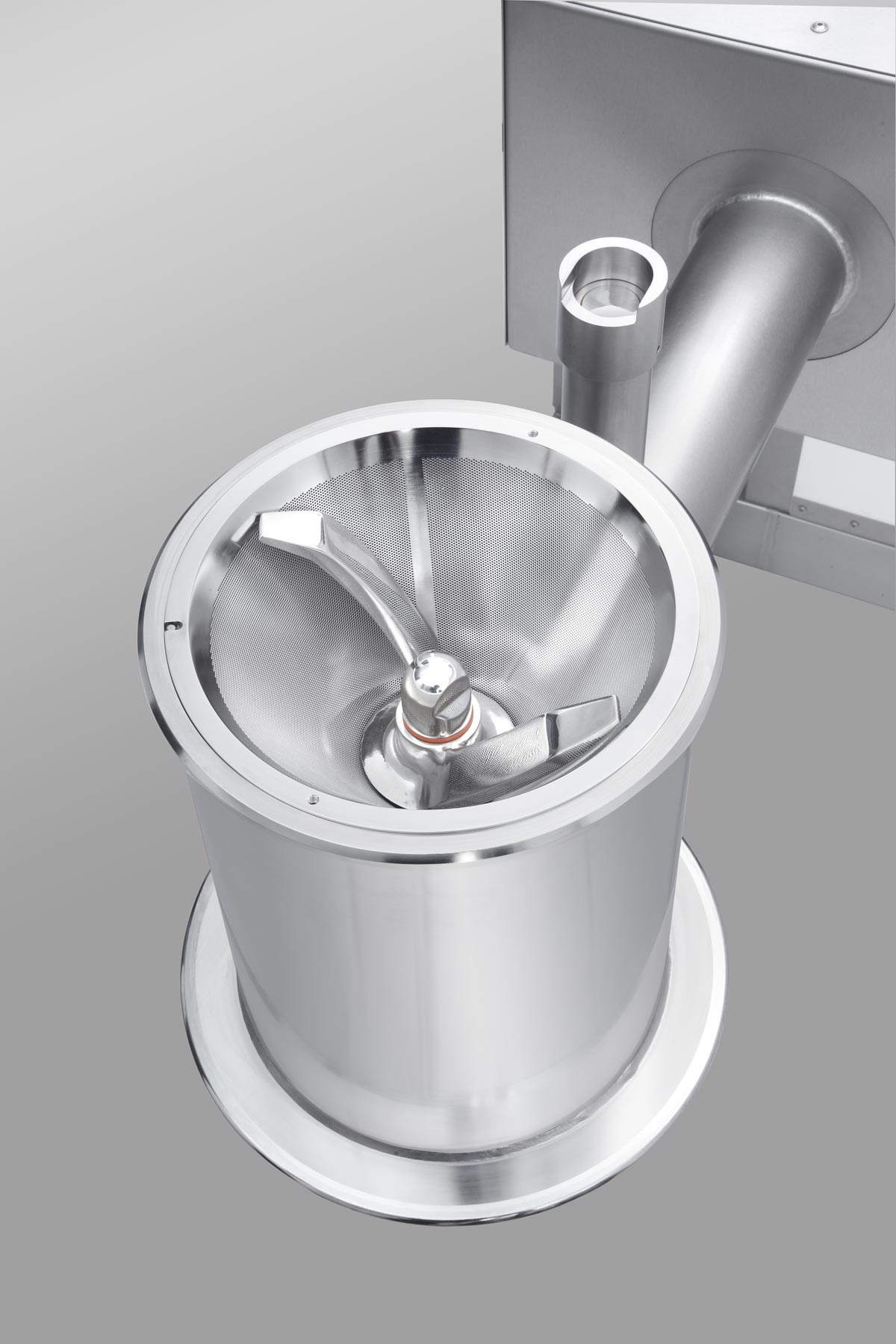

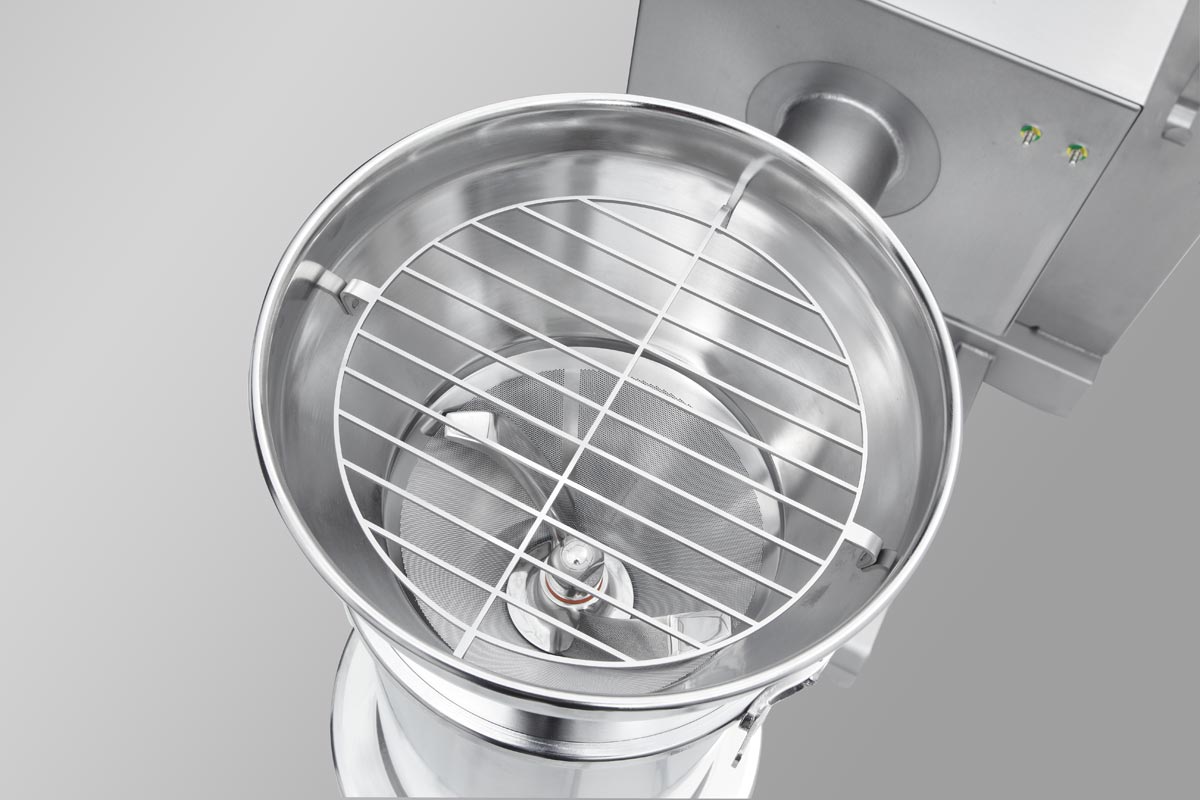

The BTS 200 features a vertical conical screen arrangement with a patented impeller design. By accepting a variety of interchangeable screens with different hole patterns and shapes, the mill addresses a diversity of process applications. Two flat curved wings of the impeller generate a much higher throughput than standard impeller designs. (Straight and standard impeller designs are also available to match various screen sizes.) A shaft drive system propels the impeller for increased throughput at high speeds. The mill design allows for a gravity feed so product passes quickly through the conical screens with reduced stress.

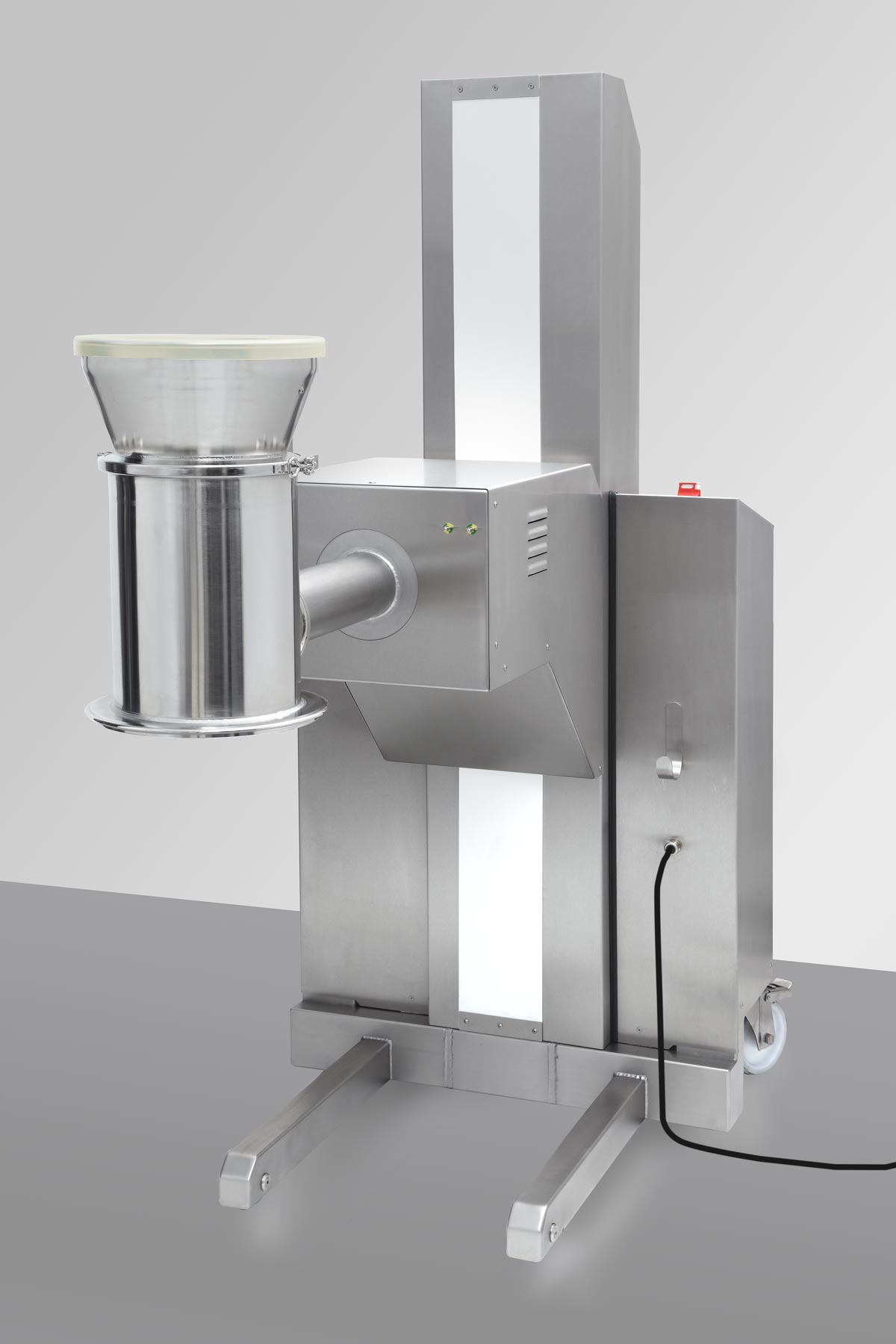

This versatile cone sieve is supplied on a mobile lifter for easy height adjustments and optimal positioning. Designed to GNP standards, units are easily disassembled for maintenance and cleaning in less than one minute without tools. Milling modules can be sterilized at 130 degrees C without disassembling. Systems are available for a completely dust-contained application, resulting in minimum product exposure to operators and cleaner production environments.
